displaySelect

The displaySelect method allows the client application to present a menu or a list of choices to the customer. This serves as a key component for interactive workflows where the user must make a decision before the transaction can proceed. Use this method to:

Offer product selections between different fuel grades, such as Regular, Mid-grade, or Premium.
Enable language selection to allow the customer to choose their preferred language for the session.
Present service options like adding a car wash or selecting a specific pump number.
Provide loyalty choices, such as asking the user to “Use Points” or “Save for Later.”

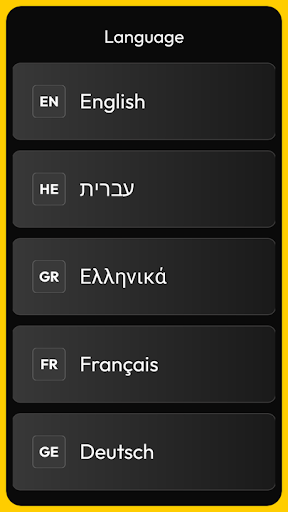

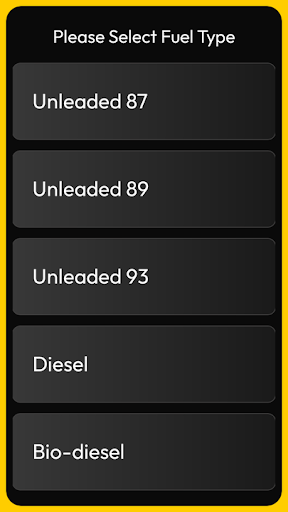

Examples of the menu display prompts on a Nayax device:

Requests

All requests must include a title for the menu and an array of options. Each option should have a label that the customer will see. The following example shows a typical request:

{
"command": "displaySelect",
"requestId": "req-009",
"data": {
"title": "Please Select Fuel Type",
"options": [
{"tag": "87", "label": "Unleaded 87"},
{"tag": "89", "label": "Unleaded 89"},
{"tag": "93", "label": "Unleaded 93"},
{"tag": "DSL", "label": "Diesel"},
{"tag": "BIO", "label": "Bio-diesel"}
],
"showTags": true
}
}

Parameter Definitions

The table below describes the parameters available for this request:

Name	Type	Required	Description
command	string	Yes	Set to `"displaySelect"`.
requestId	string	Yes	A unique identifier for tracking the response.
title	string	Yes	The header text displayed above the options list.
options	array	Yes	A list of strings representing the choices available to the user.
timeout	integer	No	Duration (in seconds) before the menu auto-closes if no selection is made.

Responses

The terminal returns the index or the value of the option selected by the customer. The following example shows a typical response:

{
"requestId": "req-009",
"data": {
"selectedIndex": 0
}
}

Response Parameters

The data object contains the result of the customer’s interaction:

Name	Type	Description
selectedIndex	integer	The zero-based index of the option chosen from the original list.
selectedValue	string	The text label of the option that was selected.
state	string	Returns `COMPLETED` upon selection or `CANCELLED` if the user exited the menu.
