C# & Java SDK Integration

This guide shows you how to integrate the Marshall SDK into your C# or Java application. You’ll learn how to:

Import the SDK package into your project
Create and configure a VMC settings object
Set up the serial (COM) port for communication
Register event listeners and start the SDK

The instructions are presented side by side for both languages.

Prerequisites

Before you begin, make sure you have:

Downloaded the appropriate SDK files, .jar for Java or .dll for C#.
Identified the correct COM port for the Marshall cable.
For Java- ensure that you have Java 8 (also known as Java 1.8) and above. Note that for the newest version of Nayax’s Java SDK (0.1.6.8) you’d need Java 11- but should you like us to, we can look into having it be compiled with Java 8.

Integrate Marshall

To perform the integration, follow the steps below:

Import the provided .JAR or SDK DLL file into your project.

Import the necessary namespaces in your code.

import com.bitmick.marshall.models.*;

using com.bitmick.marshall.models;

Instantiate a VMC configuration object:

public vmc_configuration vmc_config = new vmc_configuration();

vmc_configuration vmc_config = new vmc_configuration();

Fill in the appropriate fields. The following code block presents a standard configuration:

public static void main(string[] args) {
        vmc_config.multi_vend_support = false;
        vmc_config.multi_session_support = false;
        vmc_config.price_not_final_support = false;
        vmc_config.reader_always_on = false;
        vmc_config.always_idle = false;
        vmc_config.vend_denied_policy = vmc_configuration.vend_denied_policy_cancel;
        vmc_config.explicit_vend_success = false;
        vmc_config.long_price = false;

        vmc_config.mifare_approved_by_vmc_support = false;
        vmc_config.mag_card_approved_by_vmc_support = false;
        vmc_config.qr_approved_by_vmc_support = false;

        vmc_config.dump_packets_level = vmc_configuration.debug_level_dump_moderate;
        vmc_config.debug = true;
}

public class vend_machine
            vmc_config.multi_session_support = false;
            vmc_config.multi_vend_support = false;
            vmc_config.price_not_final_support = false;
            vmc_config.reader_always_on = false;
            vmc_config.always_idle = false;
            vmc_config.explicit_vend_success = false;
            vmc_config.vend_denied_policy = vmc_configuration.vend_denied_policy_cancel;
            vmc_config.long_price = false;

            vmc_config.mag_card_approved_by_vmc_support = false;
            vmc_config.mifare_approved_by_vmc_support = false;

            vmc_config.debug = true;
            vmc_config.dump_packets_level = vmc_configuration.debug_level_dump_moderate;

Mandatory FieldsThe customer machine information is mandatory for the VMC configuration. These are the model, serial, hw_ver, and the manuf_code. Read more about these fields in VMC Configuration Object.

Setup the COM port.

m_vmc.link.set_serial_port(new pc_port("COM18", 115200))

m_vmc.link.set_serial_port(new pc_port("COM18", 115200))

COM PortMake sure that you change the COM parameter to the one your Marshall cable is connected to.

Note- in the near future we plan on having the possibility to use Marshall over ETH (supported only for VPOSM)- in that case, there would be no COM port but rather an IP address which would be under the same local network as the Nayax device, and optionally the relevant IP port (which by default should remain untouched [has by default the value of “12345” which is meaningless])
m_vmc.link.set_serial_port(new eth_port("192.168.112.127", (short) 12345, false));
vmc_instance = marshall_init(new eth_port("192.168.68.101", 12345));

Configure the SDK and register to link events.

m_vmc.link.configure(vmc_config);
m_vmc.link.set_events(new vmc_link_events());

m_vmc.link.configure(vmc_config);
m_vmc.link.set_events(new vmc_link_events());

Start the SDK and wait for the onReady() event:

vmc_instance .start();

m_vmc.link.start();

Using AndroidOn android, you either need support from your provider or use a FTDI chip, which we provide port implementation for. (see the “android” folder in the JAVA SDK release)

CPU and Memory Requirements

Neither SDK has any special hardware requirements. If your machine can run a JVM, it can run the SDK. The SDK developer estimates memory usage at around 50KB of RAM and close to zero CPU time. The SDK is roughly 100 lines of code executed every 5ms, plus a little more per packet when serial data arrives.

Run the SDK on Android

On Android you do not use the serial port number. If your board has an onboard serial port, use the regular low-level implementation of the Java SDK. Most Android boards do not have one, and in that case you use the Android low-level file that Nayax provides. Use the Java SDK as is, changing only the low-level serial port, following the code in the demo named nayax-android-marshall-demo_0_1_6_02. The part of the SDK that handles the serial port is shown below.

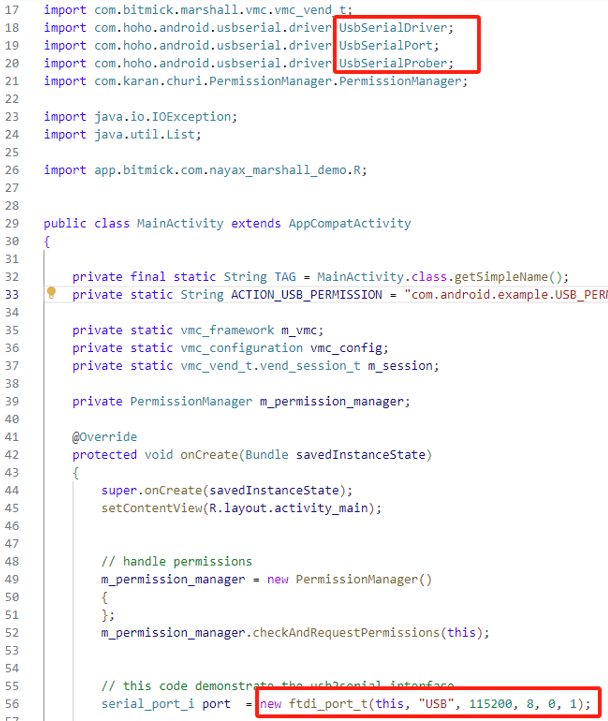

Serial port section of the Java SDK that the Android low-level file replaces

With the Android low-level serial implementation you cannot run the demo app itself, but you can still read it as a reference for how to start transactions.

For logging on Android, pass the logger a BufferedWriter object. The example below writes to the SD card.

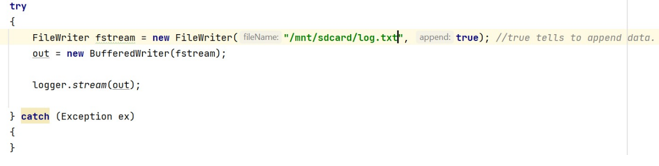

Example of passing a BufferedWriter to the logger to write to the SD card on Android

UART Located at /dev/tty

Android cannot access /dev/tty.... You need the vendor’s serial port library and an implementation of serial_port_i wrapped around it. FTDI is for a converted USB serial port.

Update to a Newer SDK Version

Updating an existing integration to a newer SDK version is a file swap. For Java, replace the .JAR file, which sits in the libs folder inside the SDK’s directory.

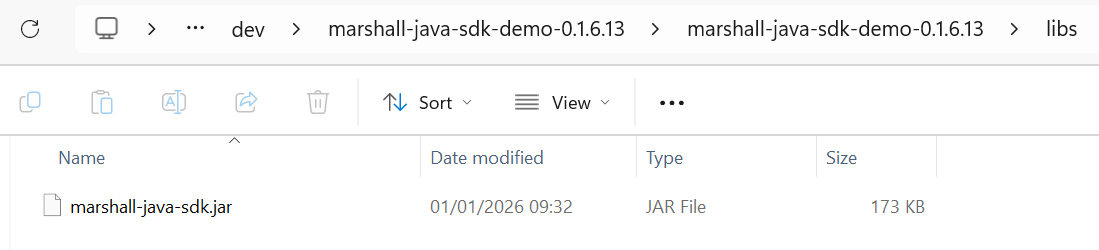

Location of the JAR file inside the libs folder of the Java SDK directory

For C#, replace the .DLL file, which sits in the SDK’s directory.

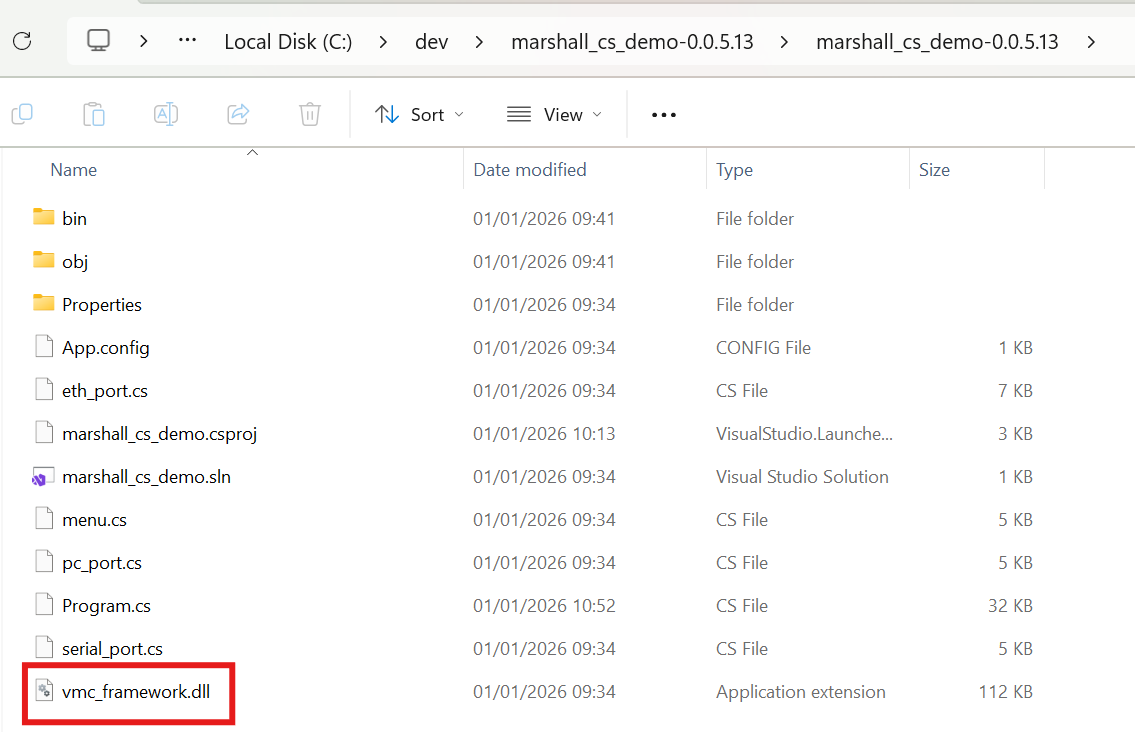

Location of the DLL file in the C# SDK directory
